Battery Relocation Wiring Diagram
Gauge wire they recommend is even less adequate that the stock mustang wiring. Wiring/electrical savvy folks, please advise on which setup is the safest.

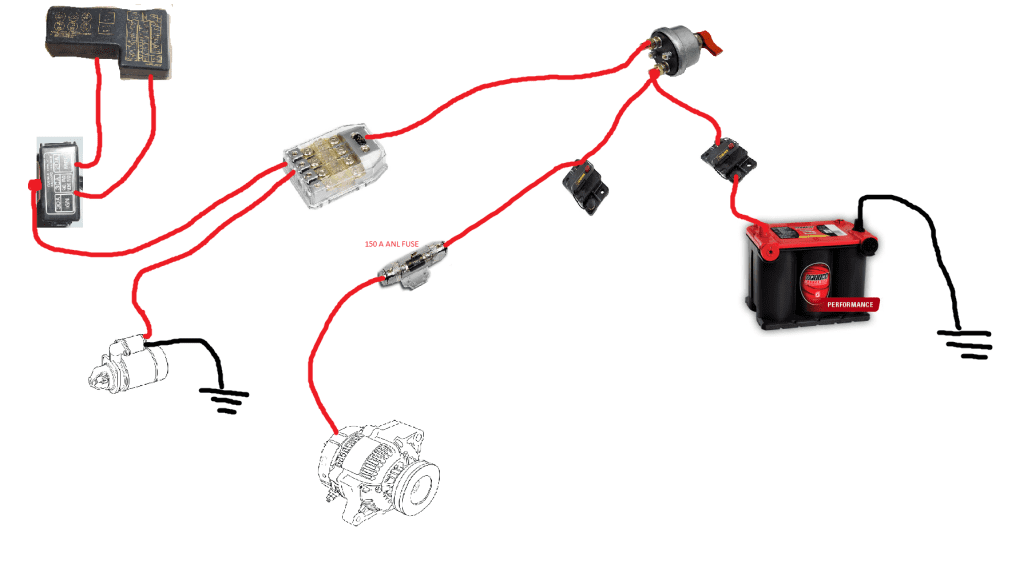

I’ve been reading a lot about relocating the battery to the rear of the vehicle trying to figure out the best way to wire it.
Battery relocation wiring diagram. There is a solution, but it will require about 40' of 18 gauge green wire. And this is not widely accepted or done, but maybe think about fusing the main power wire off of the battery. The process is simple as long as a few basic mounting practices are followed.
A battery box must be used to isolate the battery from any other items in the area and it should be securely mounted to the. Paolo musante's '68 alternator wiring diagram. Optional lighter weight 1 gage battery cables are also available for drag racing and road racing applications that will not see high battery current drain from cold starts or high power stereos or other accessories.
This is for minimum safe 100 ampere current flow through 20 feet of cable length. Remember that this wire will be live so route and. It had basic wiring for a race car and everything else.
Paolo musante's internally regulated alt. The alternator requires a different approach. Cheapest and easiest place to get large diameter wire like this is from welding supply shops.
1968 datsun 510 wiring diagram.pdf. Hey everyone, i have an older pro street 79 camaro z28 that i am putting back on the street. There is a solution, but it will require about 40' of 18 gauge green wire.
The closer to 50/50 weight distribution the better handling you will get. You might want to simply clean up the look of your engine. You don’t need 0 gauge for this.
Discussion starter · #1 · jul 26, 2016. I would like to move the battery to the rear and have seen tons of wiring diagrams but was curious if it can be. Mrdragster1970 veteran member lifetime gold member.

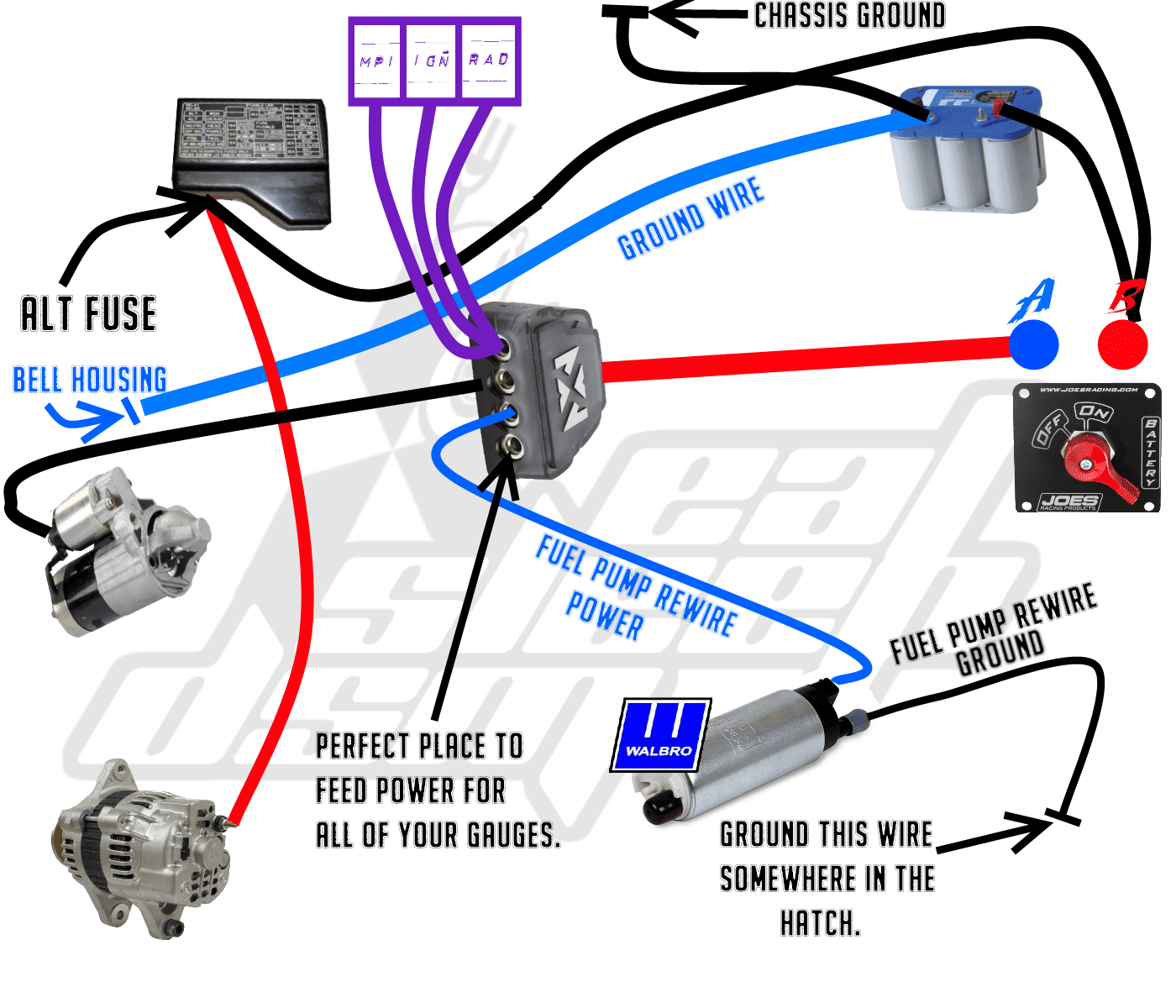

I sat down and gave it a little thought and came up with the diagram below to go off of just wanted to run it by some of you guys first to see if im missing anything or if there's any good suggestions or ideas i should. Joined jun 4, 2016 · 9 posts. Installing the battery in the trunk is the preferred option because this provides better access and protects the battery from the elements.
Moving the battery is almost as good as setting the engine back. The alternator requires a different approach. I’m not interested in simply running a cable to the stock battery location then using the stock cables.
In an accident, i doubt anyone will be around to know that there is a switch for the battery to stop the flow of power and if a short were to happen between the battery post and the switch, even turning off the switch will not disconnect power from the short. Battery relocation in a fox body mustang diy. From there i run 2 cables to alternator charging post and to another 100a circuit breaker inside the car which powers supplies the vehicle power and ecu/relays equipment.

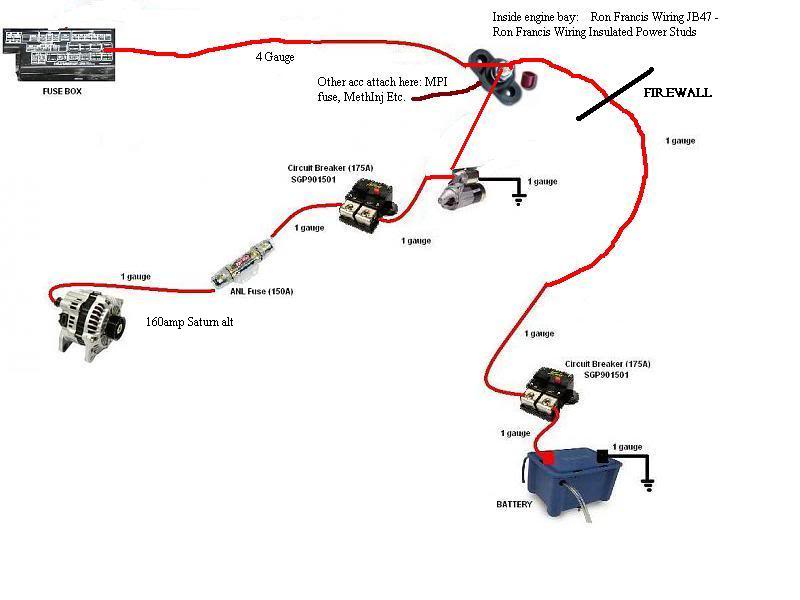

#8 · jul 17, 2009. Tags battery diagrams discuss power relocation setups simple wire. The battery cable should go from the battery to the starter motor using the same copper 0 gauge wiring, and from the starter to the power distribution stud and alternator charge terminal.
Of course most of these are for foxes and reference the starter solenoid. Use the moroso plan for the alternator wiring and you risk a fire. I did a search through the forums and found a coupe of good links.
The lpe battery relocation kit is designed to fit all body styles of the 1997 to 2004 c5 corvette.the Battery relocation wiring discussion in 'electrical systems' started by camaroman79, jan 28, 2012. 1971+ datsun 510 wiring diagram.pdf.
There are many reasons why you would want to relocate your battery with a battery relocation kit. Discussion starter · #1 · jun 2, 2003. I found a good diagram on a website here.
Apr 2, 2016 #1 flybiyou proven member. Paolo musante's battery relocation wiring diagram. Battery relocation wiring putting a optima back into the bed of the syclone and can't remember how i had it wired up before.
But all seems well when the car is just turned on or if its night time. 305 3 apr 8, 2003 somewhere, illinois. I’m interested in wiring the relocation for efficiency, and without.
Jump to latest follow status not open for further replies. I relocated my battery to my trunk and after driving the car on a hot day it is very hesitant to start and my dedicated fuel system does not work. The 10 gauge wire they recommend is even less adequate that the stock mustang wiring.

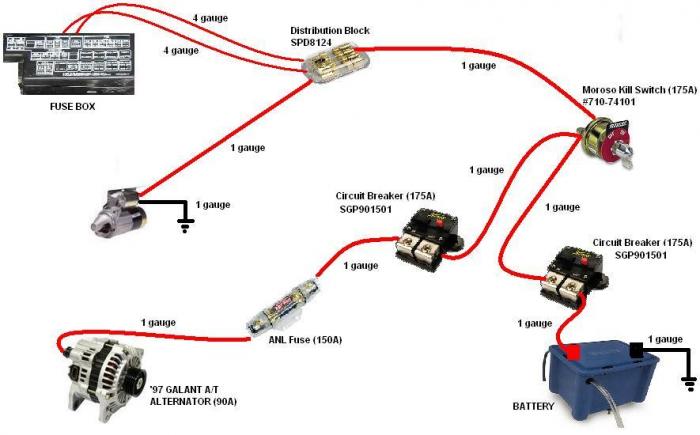

When i move the battery to the boot (trunk), i run the positive through a 200a circuit breaker and battery switch with a field cut, then to the starter motor. Start date apr 2, 2016; Wire the battery to the two 1/2 posts as shown in the diagram.
Since ours are located on the starter, they don't really apply, i think. I have searched and have not found the answer i have been looking for. Wiring diagram for additional wiring please note 2awg minimum wire thickness;
On the small alternator plug there is a green wire. Battery relocation wiring diagram discussion in 'electrical systems' started by jerry lee, jun 12, 2020. Page 1 of 3 1 2 3 next > jan 28, 2012 #1.
Moving the battery to the trunk moves 40 to 50 pounds to the rear right side of the car helping to balance it out. 3 simple battery relocation power wire setups diagrams to discuss. All the circuit breakers and other things in that diagram, i'm sure, are for a purpose but are unnecessary for a simple battery.
Wire the battery to the two 1/4 posts as shown in the diagram. 4, 6 or 8 gauge will do, depending on the electrical demands in the car. Joined may 11, 2002 · 104 posts.
